A GE Appliances washer not spinning could be attributed to various factors such as a malfunctioning lid switch, a broken drive belt, a faulty motor coupling, a worn-out drive motor, or issues with the washer’s control board. Additionally, problems with the washer’s timer or electronic controls, a clogged drain pump filter, or an imbalanced load could also hinder the spinning function.
If your GE Hydro wave, front load, or any other model of washer is not spinning, it’s essential to know that there could be several underlying reasons causing this inconvenience. Here are some troubleshooting steps to help you identify and potentially fix the problem:
Step 1: Check the Lid Switch
The lid switch is a crucial safety mechanism designed to prevent accidents while the washer is in operation. If the lid switch is malfunctioning, it can prevent the washer from spinning. Here’s how to check it:
- Open the back panel of the washer (remove the four screws).
- Locate the lid switch, which is a safety mechanism preventing the washer from spinning when the lid is open.

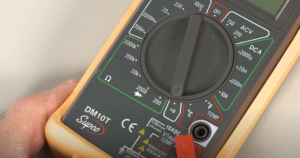

- Unplug the lid switch and test for continuity between the red and yellow wires with the lid both closed and open.
- If there is no continuity between the wires, the lid switch is functioning correctly.

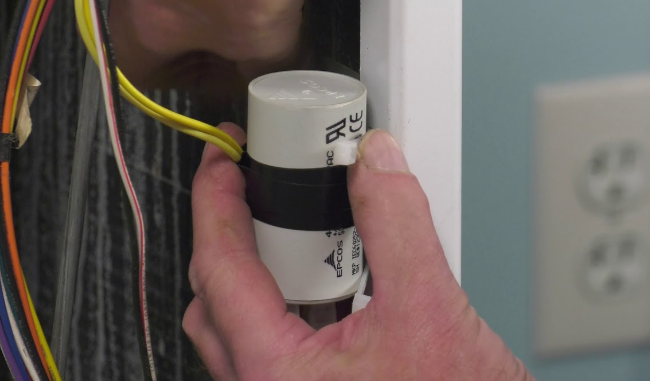

Step 2: Test the Motor Capacitor
The motor capacitor plays a vital role in providing the necessary jolt of power to start the washer’s motor. If the capacitor is faulty, the motor may not function correctly, leading to a non-spinning washer. Let’s test it:
- Locate the motor capacitor, which stores energy for the motor to start.
- Unplug the capacitor and short the leads with a screwdriver for safety.
- Use a multimeter to measure the capacitance of the capacitor. It should be within the specified tolerance (e.g., 60 microfarads with 5% tolerance).
Step 3: Inspect the Drive Belt
The drive belt is responsible for transferring power from the motor to the washer’s drum. If the belt is damaged or worn out, it can hinder the spinning action. Let’s inspect it:
- Lay the washer on a tarp or a flat surface to access the motor.
- Remove the cover to reveal the motor and drive belt.
- Check the drive belt for any signs of damage, wear, or breakage.
- If the belt is broken, replace it with a new one.

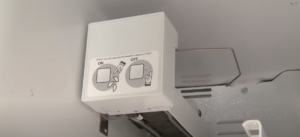

Step 4: Verify the Pressure Switch and Tube
The pressure switch and tube help the washer determine if there’s enough water in the tub before starting the spin cycle. If there’s a blockage or issue with either of them, the washer may not spin. Let’s verify them:
- Open the front panel of the washer (unscrew two screws behind the console).
- Locate the pressure switch tube, a gray tube going down to the tub.
- Ensure the tube is not clogged or damaged.
- If necessary, clean the tube to ensure proper air pressure transmission to the pressure switch.
Alternative Access to Pressure Port (if needed)
- If reaching the pressure port from the top is difficult, drain the tub and remove the washer drain hose from the bottom.
- Remove the metal plate holding the drain hose adapter and access the pressure port from below.
- Use a 1/16 drill bit to gently clear any debris or blockages from the pressure port.
Washer Reset (Optional)
- Plug the washer back in and lift and close the lid eight times within 30 seconds.
- This may reset the washer and fix the issue in some cases.
Conclusion
With these troubleshooting steps, you can easily diagnose and fix a GE washer that’s not spinning. Remember, many washer issues have simple fixes, so don’t rush to replace your appliance. Follow the steps and get your washer back to working order in no time.
Frequently Asked Questions
Why won’t my GE washer spin?
Several factors can cause this issue, such as a faulty lid switch, motor capacitor, drive belt, or a clogged pressure switch tube.
How can I check if the lid switch is working?
Open the back panel, unplug the lid switch, and test for continuity between the red and yellow wires with the lid closed and open.
What if the motor capacitor is faulty?
Measure the capacitance using a multimeter. If it deviates significantly from the specified value (e.g., 60 microfarads with 5% tolerance), replace the capacitor.
Can a clogged pressure switch tube prevent spinning?
Yes, a clogged tube can disrupt the air pressure reading, causing the washer to malfunction. Ensure the tube is clean and free from debris.

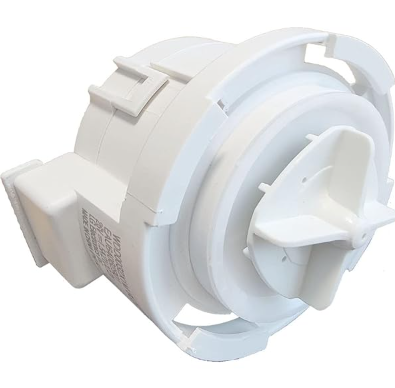

Should I consider replacing the washer drain pump?
If the drain pump has burnt out due to continuous operation, consider replacing it. Look for compatible universal replacement pumps.
Is DIY washer repair worth it?
Absolutely! Many washer issues have simple solutions that can save you money and reduce unnecessary waste. Embrace DIY and tinker away!
Key Takeaways:
- Washer not spinning? Check the lid switch, motor capacitor, and drive belt first.
- Inspect the pressure switch tube for clogs or damage.
- Use a 1/16 drill bit to clear any debris from the pressure port if needed.
- Consider a washer reset as an optional troubleshooting step.
- DIY washer repair saves money and helps the environment!
