A dishwasher air gap is a device that prevents dirty water from flowing back into the dishwasher, ensuring proper hygiene and preventing contamination. It creates a gap of air in the plumbing system to act as a barrier against backflow.
It is essentially a physical gap or open space between the dishwasher’s drain hose and the sink’s drain pipe. The air gap serves as a safety mechanism to ensure that any potential cross-contamination between the dishwasher and the sink’s drainage system is avoided.
Here’s how a dishwasher air gap works:

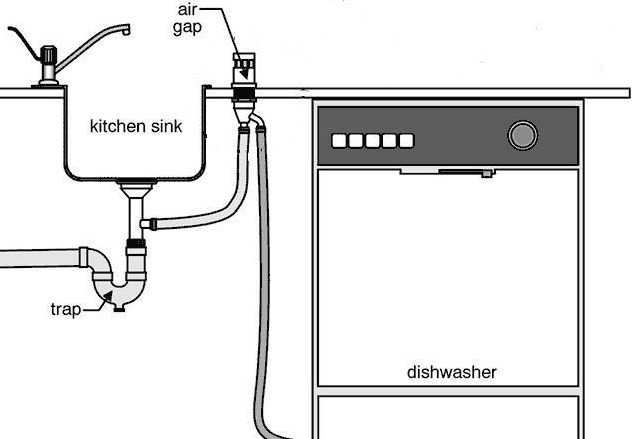

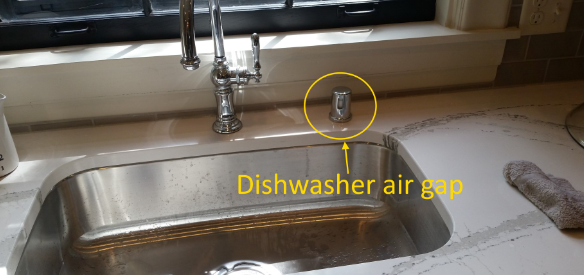

- Setup: A dishwasher air gap is typically installed on the countertop near the sink or on the top of the sink itself. It consists of a small cylindrical or conical device with an inlet, an outlet, and an open top.
- Drainage Path: The dishwasher’s drain line is connected to the inlet of the air gap. This drain line carries wastewater from the dishwasher after the washing cycle is complete.
- Household Drain Line: The outlet of the air gap is connected to the household drain line, which leads to the main plumbing system and eventually to the sewer or septic system.
- Gravity and Air Gap: When the dishwasher is draining, wastewater flows through the drain line and into the air gap’s inlet. From there, the water spills into the open top of the air gap.
- Gap and Prevention: The air gap is designed with a gap of air between the open top and the outlet. This gap prevents any backflow of water from the sink’s drain line into the dishwasher’s drain line. Even if the sink’s drain were to become clogged or backed up, the air gap ensures that the water doesn’t travel back into the dishwasher.
- Air Break: The open top of the air gap provides an “air break” in the drainage system. This break in the flow prevents the creation of a siphon effect, which could potentially pull contaminated water back into the dishwasher.
- Safe Disposal: Once the water spills over the top of the air gap, it flows down into the household drain line and is safely disposed of through the plumbing system.
Understanding the Purpose of a Dishwasher Air Gap
Why Do You Need an Air Gap?
- An air gap is required by some plumbing codes to meet safety regulations and prevent health hazards.
- It ensures that contaminated water from the sink or disposal doesn’t flow back into the dishwasher.
- An air gap serves as a reliable barrier against backflow, safeguarding your dishes and maintaining cleanliness.
How Does an Air Gap Work?
- The dishwasher inlet sends dirty water up through a tube that leads to the air gap.
- Inside the air gap, the water hits a curved top, creating a gap of air.
- The water then flows down into the disposal or sink drain through a separate tube.
- The air gap acts as a physical barrier, preventing backflow by ensuring that only air enters the dishwasher’s drainage system.
Alternatives to Air Gap: Looping the Hose
- In some areas, plumbing codes allow an alternative method called the looped hose technique.
- Instead of using an air gap, the dishwasher drain hose is looped higher than the sink drain or disposal inlet.
- The loop prevents backflow by relying on the height difference between the dishwasher and the sink drain.
Frequently Asked Questions
What is the purpose of a dishwasher air gap?
Dishwasher air gap prevents dirty water from flowing back into the dishwasher, maintaining hygiene and preventing contamination.
How does an air gap work?
An air gap creates a gap of air in the plumbing system, acting as a barrier against backflow. It ensures that only air enters the dishwasher’s drainage system, preventing contaminated water from entering.
Is an air gap necessary for a dishwasher?
The necessity of an air gap depends on local plumbing codes and regulations. Some areas require it as a mandatory safety measure, while others may allow alternative methods, such as the looped hose technique. Check with your local plumbing authority for specific requirements.
Can a dishwasher function without an air gap?
In areas where an air gap is not mandatory, alternative methods like the looped hose technique can be used. However, it is essential to comply with local plumbing codes to ensure proper drainage and prevent contamination.

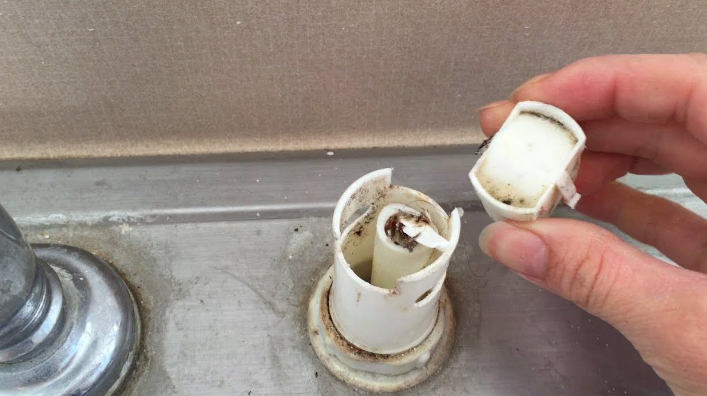

How do I maintain and clear a clogged air gap?
Regularly inspect the air gap for clogs or leaks. Clear minor clogs by blowing into the air gap with force or using a roll of paper towels. For stubborn clogs, a bottle brush can be used to remove debris. A wet/dry shop vacuum can also help clear clogs through the air gap.
Conclusion
A dishwasher air gap is an important component that prevents contaminated water from flowing back into the dishwasher, ensuring proper hygiene and preventing health hazards. While the need for an air gap may vary depending on local plumbing codes, it is always advisable to prioritize safety and consult professionals when installing or maintaining your dishwasher.
Key Points and Important Notes
- A dishwasher air gap prevents backflow of contaminated water into the dishwasher, maintaining hygiene.
- Check local plumbing codes to determine if an air gap is required or if alternative methods are acceptable.
- Proper installation and maintenance of the air gap ensure its effectiveness.
- Clear clogs by blowing into the air gap, using a bottle brush, or utilizing a wet/dry shop vacuum.
- Prioritize safety and consult professionals for specific requirements in your area.
